4 Way Distributor for LED Strip Lighting System

Short Description:

Distributor Box & DuPont Copper Junction Box & Branch Splitter for LED under Cabinet Lighting

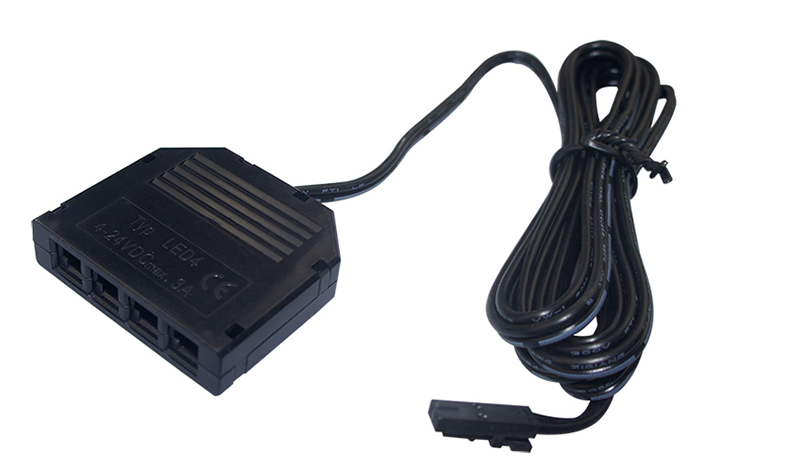

1. 4 Position LED Light Strip Connector allowing users to easily control multiple light fixtures (light strips) with a single driver.

2. This 4-way junction box features a standard DuPont plug design with quick-connect functionality and a special anti-reverse plug-in feature, making wiring convenient and efficient.

3. The DuPont Copper Junction Box is available with 3, 4, or 6 ports. You can connect all or some of the ports of the distributor to a light fixture to meet your installation needs.

Accept customized services.

FREE SAMPLES FOR TESTING PURPOSE!

Send email to us

Product Detail

Technical Data

Video

Download

OEM&ODM Service

Product Tags

Highlights

1. Simplified Wiring Layout: The 4 Position LED Light Strip Connector has 4 connection ports, maximum current of 3A for each output, allowing you to connect multiple lighting fixtures simultaneously, reducing wiring and the number of power adapters required.
2. DuPont Socket Design: Standard DuPont sockets offer a high degree of compatibility, easy plugging and unplugging, and stable contact.
3. Long-Cable Configuration: The DuPont 4-Port LED Strip Light Breakout Box has 1800mm of wiring, allowing for flexible wiring in various installation scenarios.

Available in both white and black variants.

Product Details

1. Available in both white and black variants, 4 Port Specified Junction Box can handle a maximum current of 3A for each output.Cable length: 1800mm with UL Approved cables, 20AWG.

2. 4-Channel Output Interface: The 6 Way Mini LED Light Strip Connector multiple lighting fixtures simultaneously, simplifying wiring layout.

3. Flame-retardant Housing: The DC12V-24V LED Dupont Distributor is made of black engineering plastic, which is durable and safe.

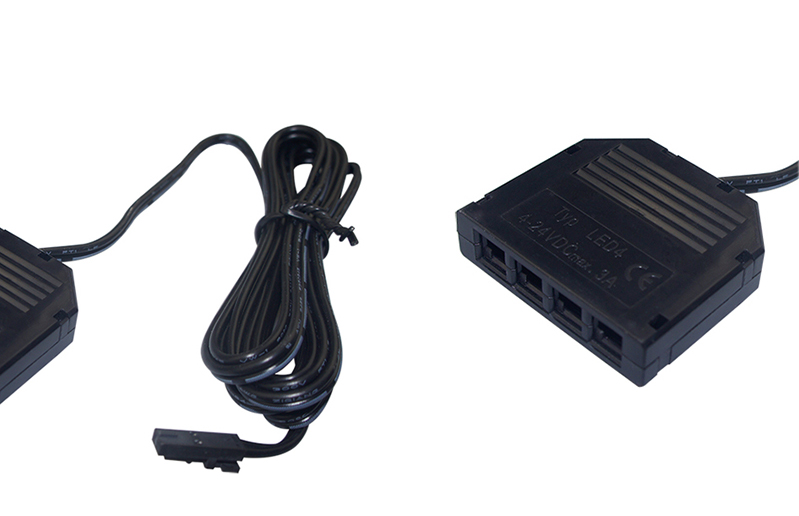

DuPont 4-Port LED Strip Light Breakout Box

Main Features

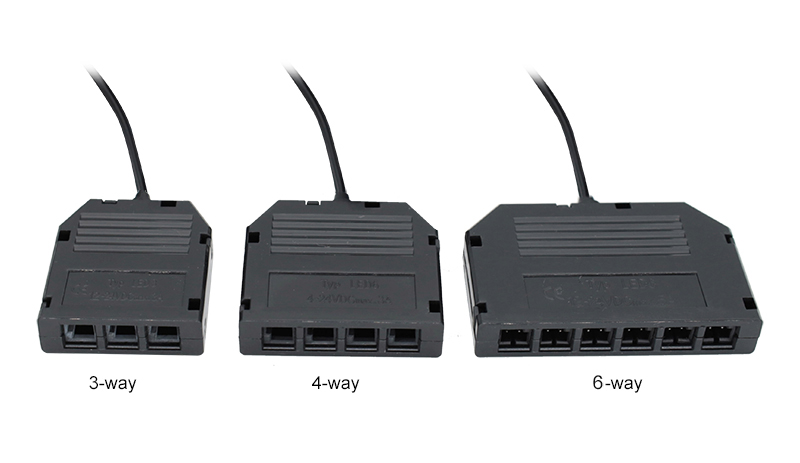

Available in 3 Ways/ 4 Ways/ 6 Ways/ 10 Ways

Application

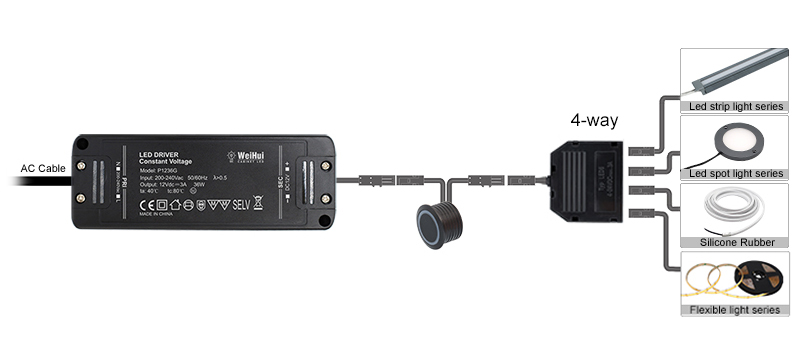

1. In general, The 6-ways Strip Light Distributor Box is connected between LED Strip light and LED Driver.

2. Cabinet Lighting Connection Box suitable for lighting connection of cabinet lamps, wardrobe lamps,wine cabinet lamps, cabinet lamps, lamp strips, lighting lamps, etc.

Here a example as below

Previous: 6 Way LED Strip Light Distributor Box

Next: DuPont Extension Cable for Cabinet Light Strip

1. Part One: LED Distributor

Model			MF01-4way

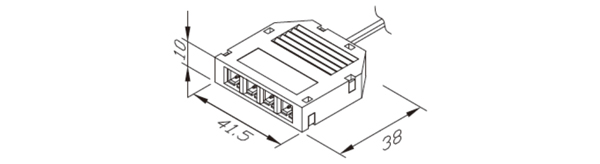

Dimensions			41.5×38×10mm
Input			Dupont 2Pin Male Plug(parallel connection)
output interface			5-bit port
Inter facetype			DuPont line
Length			1800mm
Color			Black/White
Packing			10pcs/bag
